LF Series
LF UT-20 LF UU 9.8 LF UU 9.8 V LF UU 10.5 LF UU 10.5 V LF UU 15 LF UU 12 EE LF 20x10x6 EE LF 25x9x6 EE LF 25x9x6 V EE LF 25x13x7 EE LF 25x13x7 V

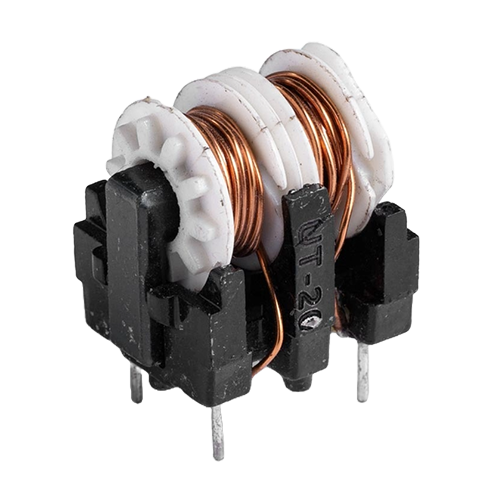

LF UT 20

  • pins

    4

  • Orientation

    Vertical

  • Size

    20 mm

  • Le

    53 mm

  • Ae

    13 mm 2

  • Ve

    688 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

Part # Inductance (mH) (min) Current Rating (A) (steady state) Leak Inductance (µH) typical DC Resistance (Ω) (max)
ut20a 0.75 1.50 20 0.120
ut20b 1.20 1.25 23 0.130
ut20c 1.80 1.00 32 0.185
ut20d 3.90 0.75 71 0.325
ut20e 5.60 0.50 105 0.500
ut20f 12.00 0.50 215 0.915
ut20g 14.00 0.40 275 1.000
ut20h 15.00 0.30 300 1.350
ut20i 22.00 0.25 430 1.950
ut20j 33.00 0.25 605 2.800
ut20k 47.00 0.20 930 3.900

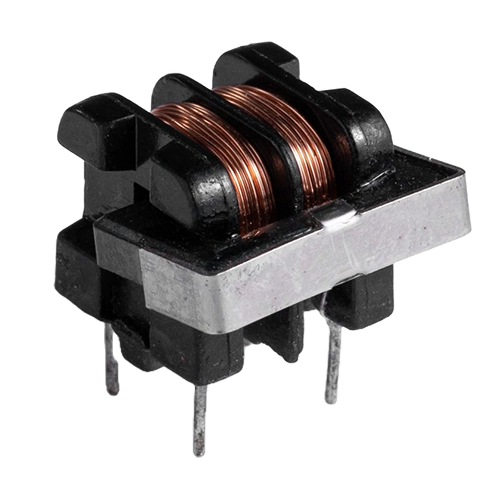

LF UU 9.8

  • pins

    4

  • Orientation

    Horizontal

  • Size

    9.8 mm

  • Le

    34 mm

  • Ae

    8 mm 2

  • Ve

    271.11 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

Part # Inductance (mH) (min) Current Rating (A) (steady state) Leak Inductance (µH) typical DC Resistance (Ω) (max)
uu9.8va 2.2 350 40 0.375
uu9.8vb 3.9 290 70 0.625
uu9.8vc 5.6 250 100 0.900
uu9.8vd 8.2 250 133 1.100
uu9.8ve 9.1 175 160 1.600
uu9.8vf 15.0 150 300 2.750
uu9.8vg 15.0 150 355 2.980
uu9.8vh 30.0 120 525 4.500
uu9.8vi 30.0 120 525 4.500
uu9.8vj 36.0 85 625 6.000

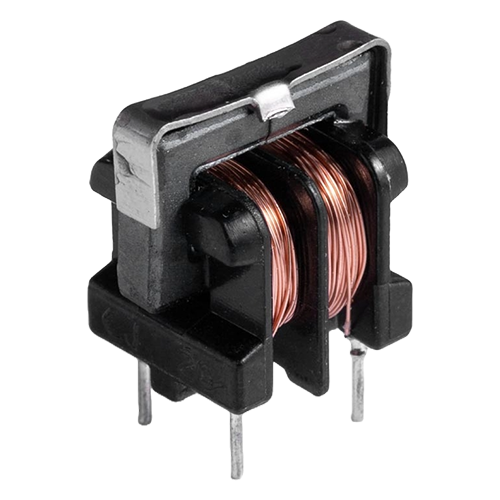

LF UU 9.8

  • pins

    4

  • Orientation

    Vertical

  • Size

    9.8 mm

  • Le

    34 mm

  • Ae

    8 mm 2

  • Ve

    271.11 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

Part # Inductance (mH) (min) Current Rating (A) (steady state) Leak Inductance (µH) typical DC Resistance (Ω) (max)
uu9.8va 2.2 350 40 0.375
uu9.8vb 3.9 290 70 0.625
uu9.8vc 5.6 250 100 0.900
uu9.8vd 8.2 250 133 1.100
uu9.8ve 9.1 175 160 1.600
uu9.8vf 15.0 150 300 2.750
uu9.8vg 15.0 150 355 2.980
uu9.8vh 30.0 120 525 4.500
uu9.8vi 30.0 120 525 4.500
uu9.8vj 36.0 85 625 6.000

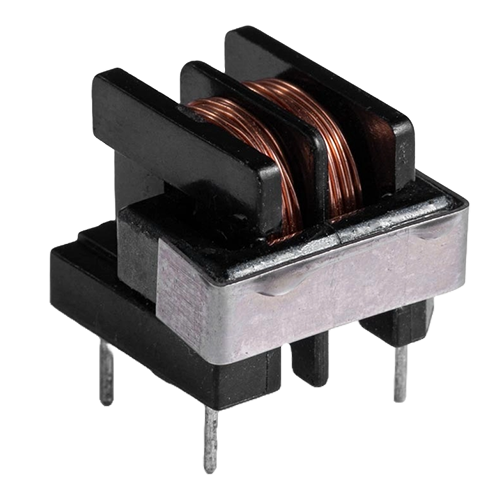

LF UU 10.5

  • pins

    4

  • Orientation

    Horizontal

  • Size

    10.5 mm

  • Le

    34.40 mm

  • Ae

    8.60 mm 2

  • Ve

    330.24 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

Part # Inductance (mH) (min) Current Rating (A) (steady state) Leak Inductance (µH) typical DC Resistance (Ω) (max)
uu10.5ha 0.75 1.200 15 0.125
uu10.5hb 1.50 1.000 25 0.150
uu10.5hc 1.50 2.000 25 0.140
uu10.5hd 2.20 0.750 40 0.225
uu10.5he 3.00 0.600 55 0.350
uu10.5hf 5.60 0.500 105 0.575
uu10.5hg 8.20 0.400 150 0.870
uu10.5hh 12.00 0.300 240 1.500
uu10.5hi 22.00 0.250 330 2.250
uu10.5hj 39.00 0.200 700 3.200
uu10.5hk 47.00 0.175 800 4.100

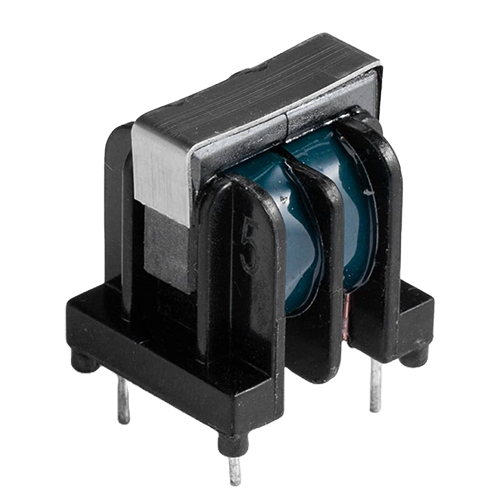

LF UU 10.5

  • pins

    4

  • Orientation

    Vertical

  • Size

    10.5 mm

  • Le

    40 mm

  • Ae

    13 mm 2

  • Ve

    518 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

Part # Inductance (mH) (min) Current Rating (A) (steady state) Leak Inductance (µH) typical DC Resistance (Ω) (max)
uu10.5ha 0.75 1.200 15 0.125
uu10.5hb 1.50 1.000 25 0.150
uu10.5hc 1.50 2.000 25 0.140
uu10.5hd 2.20 0.750 40 0.225
uu10.5he 3.00 0.600 55 0.350
uu10.5hf 5.60 0.500 105 0.575
uu10.5hg 8.20 0.400 150 0.870
uu10.5hh 12.00 0.300 240 1.500
uu10.5hi 22.00 0.250 330 2.250
uu10.5hj 39.00 0.200 700 3.200
uu10.5hk 47.00 0.175 800 4.100

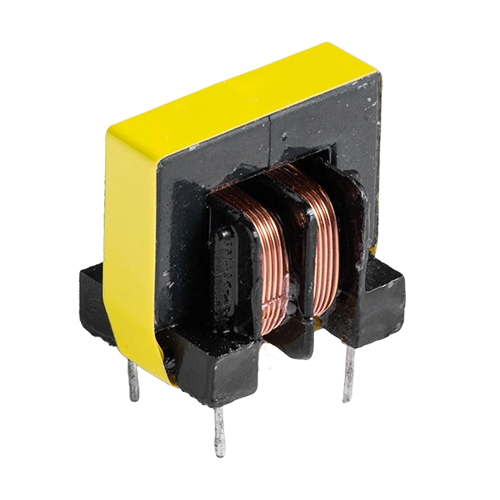

LF UU 15

  • pins

    4

  • Orientation

    Vertical

  • Size

    15 mm

  • Le

    51 mm

  • Ae

    33 mm 2

  • Ve

    1673 mm 3

  • Isolation

    At 50 Hz / 4 mA / 1 min

  • Between Windings

    1500 V AC

  • Windings to Core

    1500 V AC

  • Insulation Resistance

    At 500 V DC Greater than 100 MΩ

EE LF 12

  • pins

    4

  • Orientation

    Horizontal

  • Size

    12x7 mm

  • Le

    29.6 mm

  • Ae

    22.4 mm 2

  • Ve

    663 mm 3

EE LF 20x10x6

  • pins

    4

  • Orientation

    Horizontal

  • Size

    20x10x6 mm

  • Le

    46.30 mm

  • Ae

    32.10 mm 2

  • Ve

    1490 mm 3

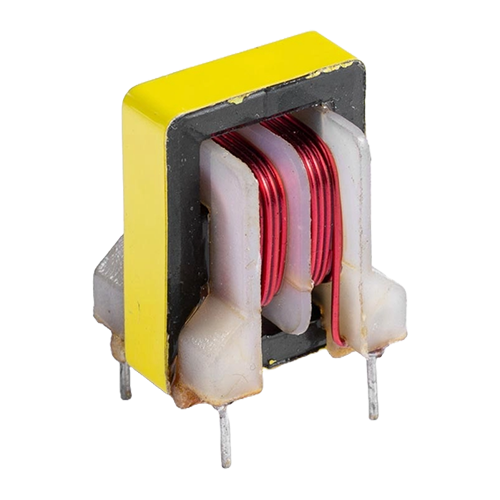

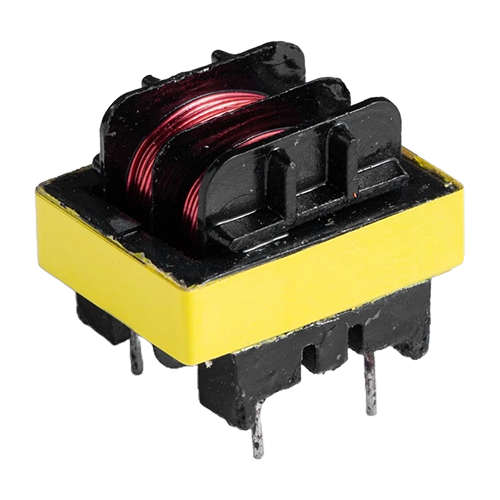

EE LF 25x9x6

  • pins

    4

  • Orientation

    Horizontal

  • Size

    25x9x6 mm

  • Le

    49.2 mm

  • Ae

    38.8 mm 2

  • Ve

    1910 mm 3

EE LF 25x9x6

  • pins

    4

  • Orientation

    Vertical

  • Size

    25x9x6 mm

  • Le

    49.2 mm

  • Ae

    38.8 mm 2

  • Ve

    1910 mm 3

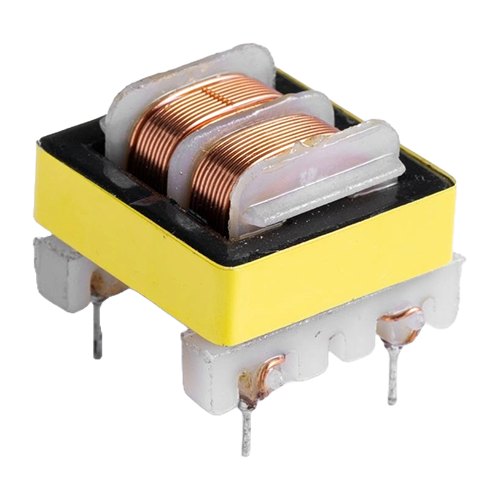

EE LF 25x13x7

  • pins

    4

  • Orientation

    Horizontal

  • Size

    25x13x7 mm

  • Le

    57.5 mm

  • Ae

    52.5 mm 2

  • Ve

    3020 mm 3

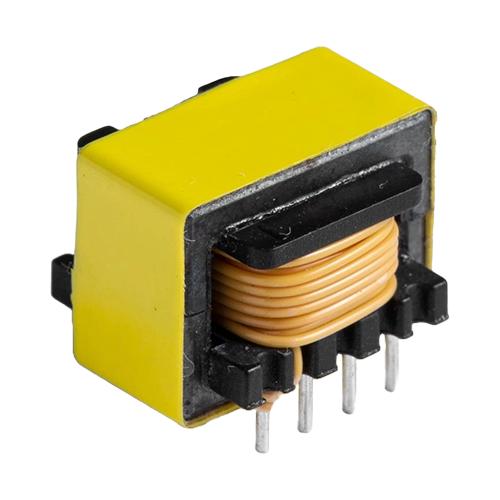

EE LF 25x13x7

  • pins

    4

  • Orientation

    Vertical

  • Size

    25x13x7 mm

  • Le

    57.5 mm

  • Ae

    52.5 mm 2

  • Ve

    3020 mm 3
