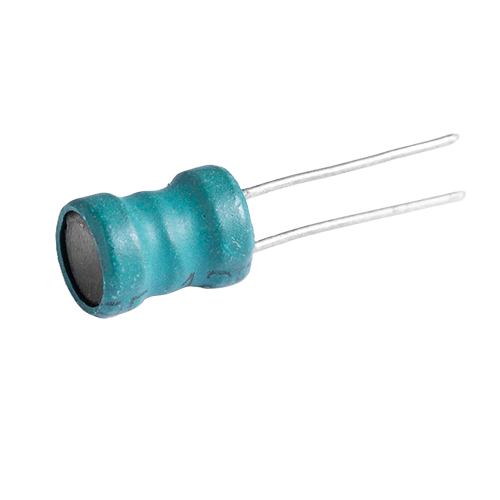

Drum Coil 6x8
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 1276 | 3.3 | 27 | 0.022 | 2.5 | 15 | 0.7 | 250 |
| 1331 | 1000.0 | 39 | 3.146 | 2.5 | 15 | 0.7 | 250 |
| 1523 | 10.0 | 28 | 0.044 | 2.5 | 15 | 0.7 | 250 |
| 1530 | 2200.0 | 39 | 5.121 | 2.5 | 15 | 0.7 | 250 |
| 2600 | 5000 | 42 | 12.710 | 2.5 | 15 | 0.7 | 250 |

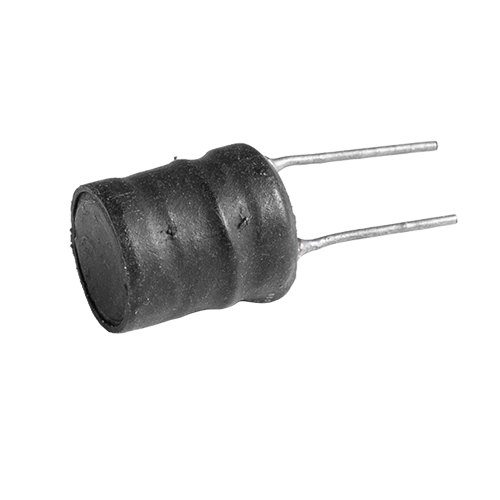

Drum Coil 8x10
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 1317 | 3.3 | 26 | 0.016 | 5 | 15 | 0.7 | 500 |
| 1496 | 10.0 | 26 | 0.030 | 5 | 15 | 0.7 | 500 |
| 1522 | 1000.0 | 36 | 1.852 | 5 | 15 | 0.7 | 500 |
| 1631 | 2200.0 | 37 | 3.387 | 5 | 15 | 0.7 | 500 |
| 2192 | 5000.0 | 38 | 7.386 | 5 | 15 | 0.7 | 500 |

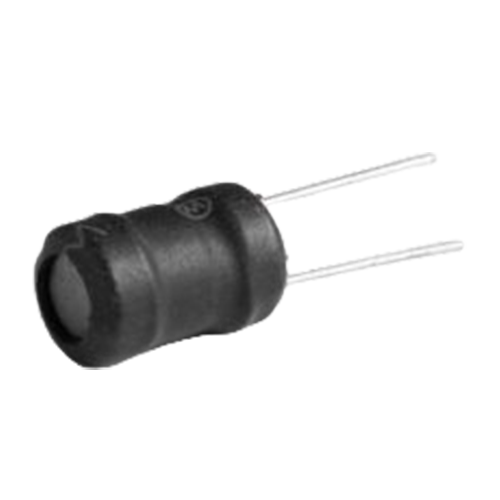

Drum Coil 8x12
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 3124 | 500 | 32 | 0.732 | 5 | 15 | 0.7 | 750 |
| 4031 | 322 | 30 | 0.414 | 5 | 15 | 0.7 | 750 |
| 4040 | 200 | 28 | 0.246 | 5 | 15 | 0.7 | 750 |
| 4075 | 2200 | 36 | 2.990 | 5 | 15 | 0.7 | 750 |
| 9356 | 1000 | 32 | 1.166 | 5 | 15 | 0.7 | 750 |
Drum Coil 10x12
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 1004 | 2200.0 | 33 | 2.214 | 5 | 15 | 0.8 | 800 |
| 1495 | 10.0 | 24 | 0.024 | 5 | 15 | 0.8 | 800 |
| 1536 | 1000.0 | 32 | 1.108 | 5 | 15 | 0.8 | 800 |
| 3344 | 5000.0 | 36 | 5.381 | 5 | 15 | 0.8 | 800 |
| 4051 | 3.3 | 19 | 0.005 | 5 | 15 | 0.8 | 800 |

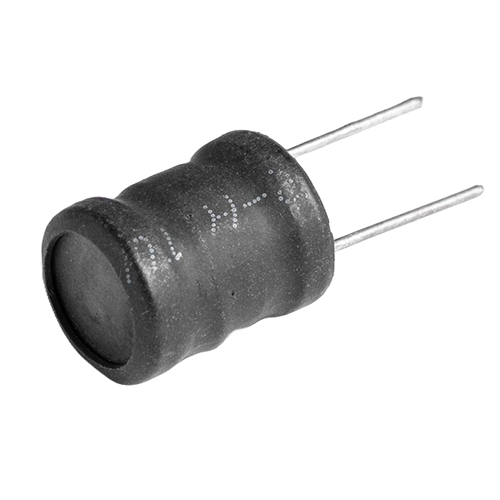

Drum Coil 12x15
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 1888 | 3.3 | 22 | 0.010 | 5.0 | 15 | 0.8 | 1 |
| 3122 | 2200.0 | 32 | 1.741 | 7.5 | 15 | 0.8 | 1 |
| 4020 | 100.0 | 23 | 0.076 | 7.5 | 15 | 0.8 | 1 |
| 4027 | 1000.0 | 28 | 0.723 | 7.5 | 15 | 0.8 | 1 |
| 4030 | 5000.0 | 32 | 3.812 | 7.5 | 15 | 0.8 | 1 |

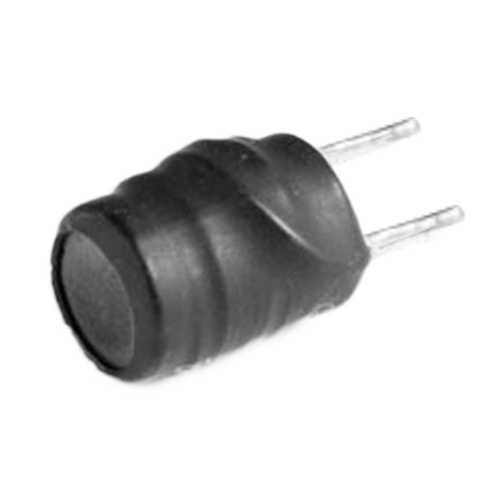

Drum Coil 14x20
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 4006 | 1500 | 27 | 0.877 | 7.5 | 10 | 0.8 | 2.5 |

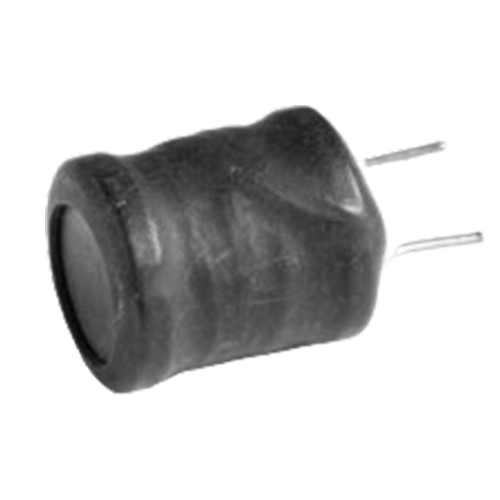

Drum Coil 16x18
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 4083 | 47 | 32x10 | 0.028 | 9.5 | 10 | 0.8 | 2.5 |

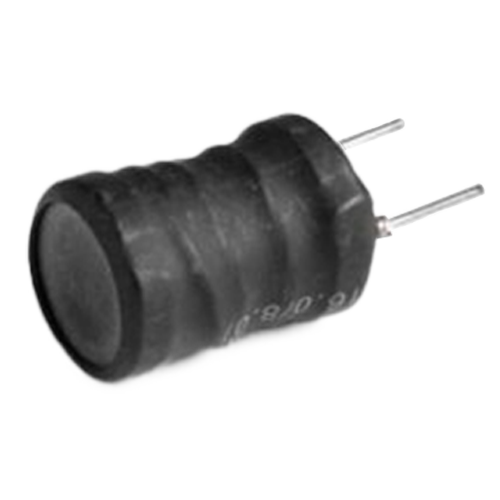

Drum Coil 16x22
| DCN | Inductance @ 1 KHZ, 0.3 V (µH) | Wire Gauge (SWG) | DC Resistance @ 200 ℃ (Ω) (max) | Pin Pitch (mm) | Pin Length (mm) | Pin Diameter (mm) | Rated Current (RMS) (mA) |
|---|---|---|---|---|---|---|---|
| 1776 | 700 | 27x2 | 0.282 | 9 | 15 | 1 | 5 |
| 4072 | 10 | 25x2 | 0.022 | 9 | 15 | 1 | 5 |
