Bit Coil 4x14
- Size
4x14 mm
- DCN
1253
- Inductance
@ 1 KHZ, 0.3 V (µH)
3.3
- Wire Gauge (SWG)
25
- DC Resistance @ 200 ℃ (Ω) (max)
0.018
- Pin Pitch (mm)
5
- Pin Length (mm)
10
- Pin Diameter (mm)
0.5
- Rated Current (RMS) (A)
2

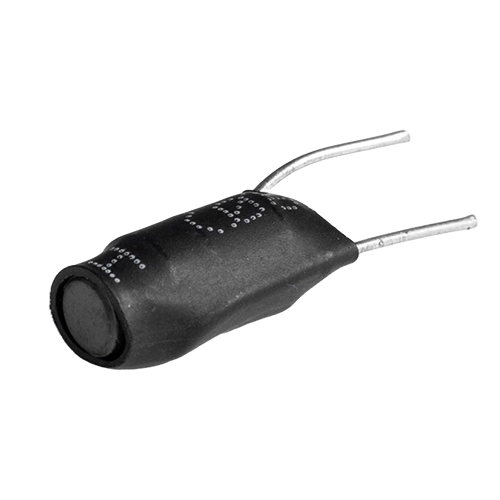

Bit Coil 5x15
- Size
5x15 mm
- DCN
1252
- Inductance
@ 1 KHZ, 0.3 V (µH)
3.3
- Wire Gauge (SWG)
21
- DC Resistance @ 200 ℃ (Ω) (max)
0.008
- Pin Pitch (mm)
6
- Pin Length (mm)
10
- Pin Diameter (mm)
0.8
- Rated Current (RMS) (A)
3

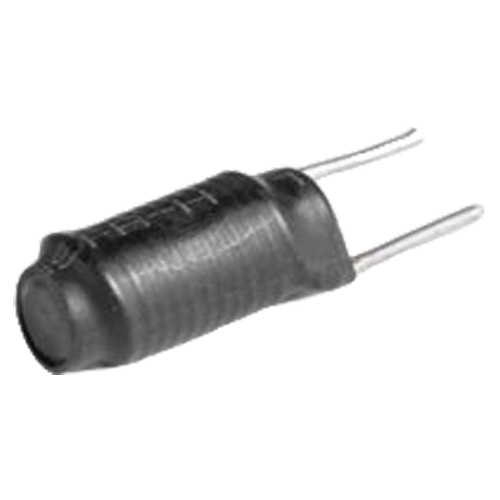

Bit Coil 6x20
- Size
6x20 mm
- DCN
1254
- Inductance
@ 1 KHZ, 0.3 V (µH)
3.3
- Wire Gauge (SWG)
19
- DC Resistance @ 200 ℃ (Ω) (max)
0.006
- Pin Pitch (mm)
7
- Pin Length (mm)
10
- Pin Diameter (mm)
1
- Rated Current (RMS) (A)
5

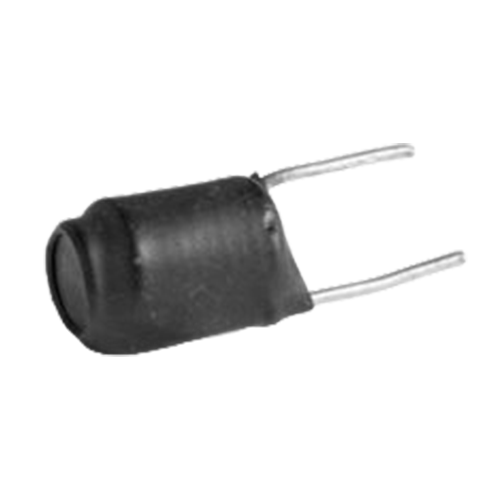

Bit Coil 8x15
- Size
8x15 mm
- DCN
4053
- Inductance
@ 1 KHZ, 0.3 V (µH)
3.3
- Wire Gauge (SWG)
19
- DC Resistance @ 200 ℃ (Ω) (max)
0.007
- Pin Pitch (mm)
9
- Pin Length (mm)
10
- Pin Diameter (mm)
1
- Rated Current (RMS) (A)
5

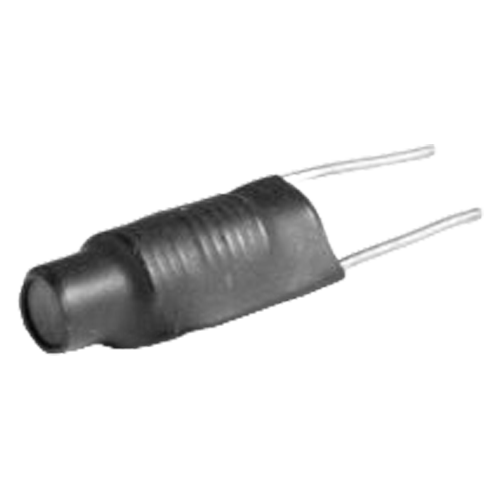

Bit Coil 8x30
- Size
8x30 mm
- DCN
2504
- Inductance
@ 1 KHZ, 0.3 V (µH)
5
- Wire Gauge (SWG)
18
- DC Resistance @ 200 ℃ (Ω) (max)
0.006
- Pin Pitch (mm)
9
- Pin Length (mm)
10
- Pin Diameter (mm)
1.2
- Rated Current (RMS) (A)
10
